Turbine Layout

Current layout

Initial layout

Select a topic

Select topics below to change what's displayed on the map and learn more about the project.

Project infrastructure
Visual assessment
Noise
Biodiversity
Water

The project will include up to 74 wind turbines and produce up to 533 megawatts and is designed to potentially include a battery energy storage system (BESS).

*Map data is indicative only and is subject to change

Turbine Layout

Map layers

Scoping report layout

Proposed EIS layout

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Back to topics

Project Infrastructure

Map layers

Substation

Battery energy storage system

Switching station

Project Energy Connect line (under construction)

Turbine hardstands

Meteorological masts

Access tracks

Electrical reticulation

Underground transmission line

Map of the proposed project site, turbine layout, electrical and construction infrastructure of the Wilan Wind Farm is for the current 74 turbine layout.

The layout is as per the current design as of 30 September 2024 and is subject to change.

Back to topics

Visual assessment

Through studies completed for the Wilan Wind Farm, a visual representation of the project in the form of photomontages have been produced for the following key public viewpoints:

Willowvale Rest Area, Sturt Highway
Sturt Highway, Maude
The Willows Camp Ground and Picnic Area, Yanga Parks
Yanga Lake Viewing Platform

These photomontages have been generated using digital photographs with ‘wireframes’ and 3D rendered modelling to depict the expected view of the project once operational.

Back to topics

Noise

Map layers

Noise contours

Dwellings

Modern wind turbines generate some noise however they are much quieter than may be expected. The noise levels at wind farms will vary based on the wind turbine technology, layout, topography and wind speed.

An independent technical noise assessment has been completed for the Wilan Wind Farm. The map shows the decibel noise contours on the proposed project site. Modelled operational noise from the turbines in the studies indicates that all non-associated receivers will be below the 35 dB threshold. For more information on the guidelines relating to noise limits in NSW, please refer to the Draft Wind Energy Guidelines.

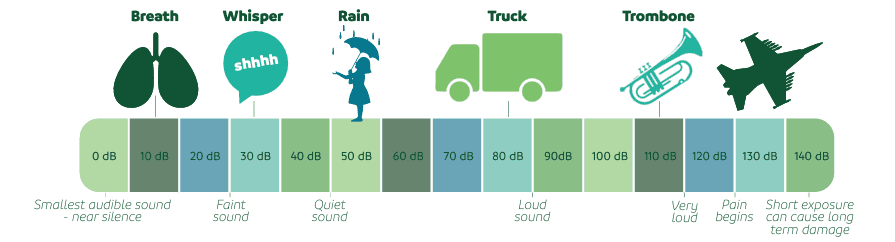

While describing sound levels can be complex as perceptions are influenced by multiple layers, the below illustration provides a guide to different sound levels.

Back to topics

Biodiversity

Map layers

Low biodiversity value

Moderate biodiversity value

High biodiversity value

As part of the development process for the Wilan Wind Farm, a series of technical studies have been conducted to assess various aspects of the ecosystem. This includes studies on birds, bats and other important flora and fauna.

The selected location is on approximately 16,350 hectares of land, and is primarily used for light to moderate pastoral grazing. The western extent of the wind farm site is located adjacent to the Yanga State Conservation Area (Yanga SCA) which is managed by NSW National Parks and Wildlife Service (NPWS). Portions of the Gayini property outside of the proposed wind farm area have been restored as floodplain wetlands.

The constraint map displays areas of low, moderate and high biodiversity value. The constraint ranking reflects the potential biodiversity significance of an area. As a result of the ongoing studies, the Wilan Wind Farm has been able to adapt the design and layout of the wind farm to significantly reduce biodiversity impacts within the project site area.

Back to topics

Water

Map layers

1 in 100 year flood modelling

The project has completed several flood modelling studies for the site. The map shows the 1% annual exceedance probability flood model, which can be interpreted as a 1 in 100 year flood event. The Wilan Wind Farm has been designed to avoid these flood-prone areas and to minimise any impacts to natural waterways.

Back to topics

What does a wind turbine look like?

The turbines at Wilan will have a tip height up to 300m and a blade length of up to 100m
